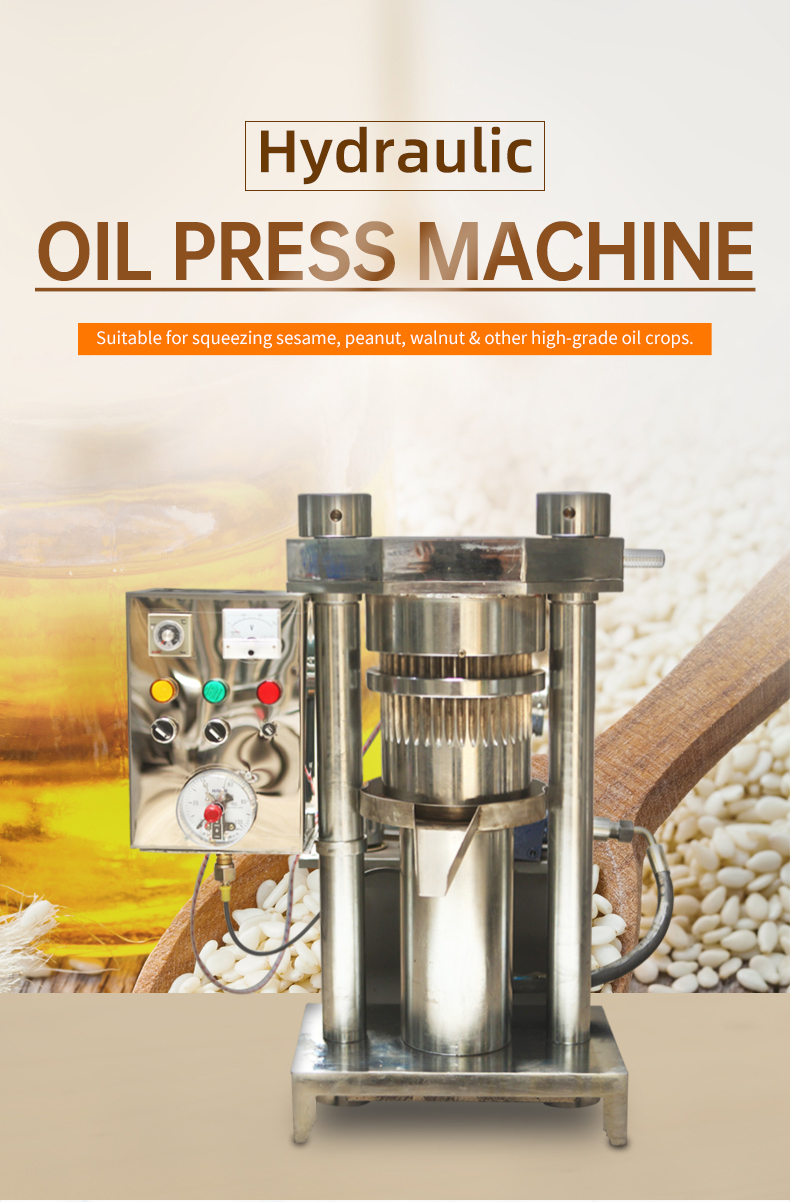

Hydraulic oil press machine

Automatic hydraulic oil press machine mainly use oil seeds such as coconut, olive, avocado, sesame, walnut and pine nut etc.  This product is with beautiful appearance, convenient operation, stable performance,small footprint, less power consumption, low noise, it makes oil mellow and original flavor, which can be used and sold in supermarket, vegetable market , grain&oil store, etc.

This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for pressing sesame, pine nut, walnut, and so on valuable oil seeds.

Full automatic hydraulic oil press is a small oil press which is most convenient in operation, highest yield efficiency, as well as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.

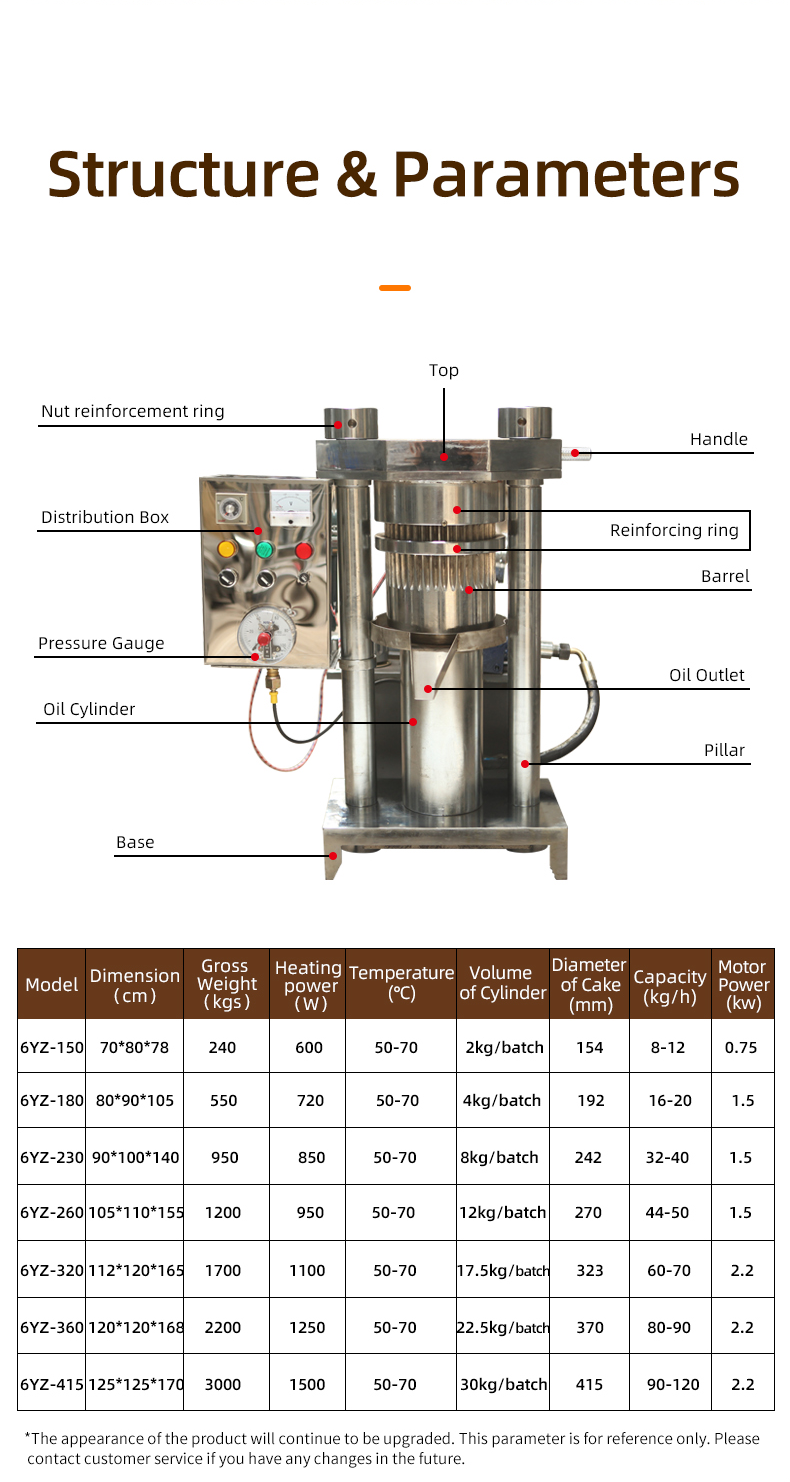

Structure of hydraulic oil press machine
1.Main engine:Main engine includes base, upright, top plate, oil drip pan nut and so on , it is one of the main parts. Firstly the oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston ,oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage.

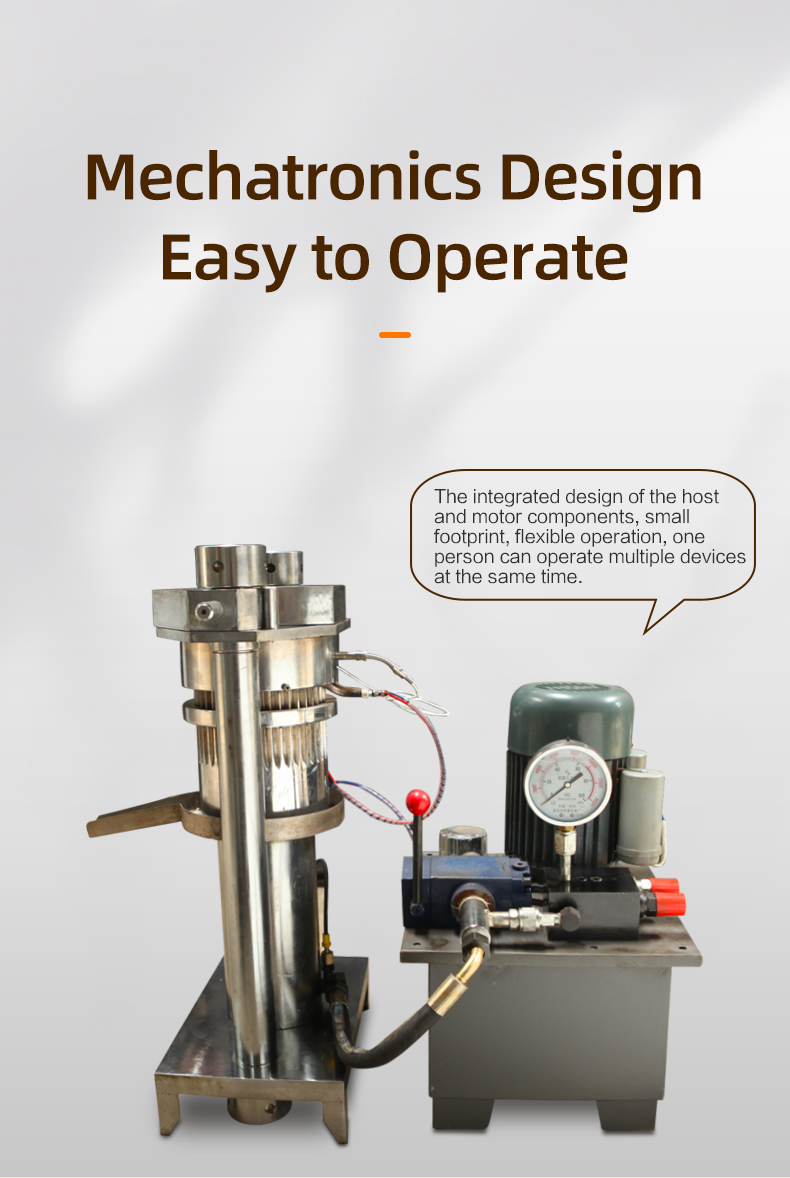

2.Hydraulic System :Hydraulic system is the main power force of this machine, it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts. This machine adopts the advanced power pack of the world, and compared with two plunger pump, it is faster , higher pressure and can resist higher temperature, it can continue working when the oil temperature is above 65 but needn’t cooling unit.
3.Electronic system:Electronic system is the most advanced part of this machine, it is fully automatic, easy to operate, and there’s no special request to the operator, so this machine is particularly suitable for peasant.
This machine is composed of motor, volt meter, pressure gauge, power insurance and so on.
