Septic tank biogas system

Septic tank biogas system

Denomination or Username
NIRUDI - [Eco Sustainable Digital ePlatform Tool]
Country
Spain
Continent
Europe
Description
Description details

The system is used to process sewage water and food waste and is mainly composed of 12 biogas septic tanks, a liquid fertilizer storage pool, and the biogas utilization system. The biogas septic tank is 2m3 in volume and is made with fiber glass reinforced plastic. The biogas septic tank is composed of an upper part and a under part that are connected by screw bolts.

The upper parts and under parts can be stacked up for shipment.

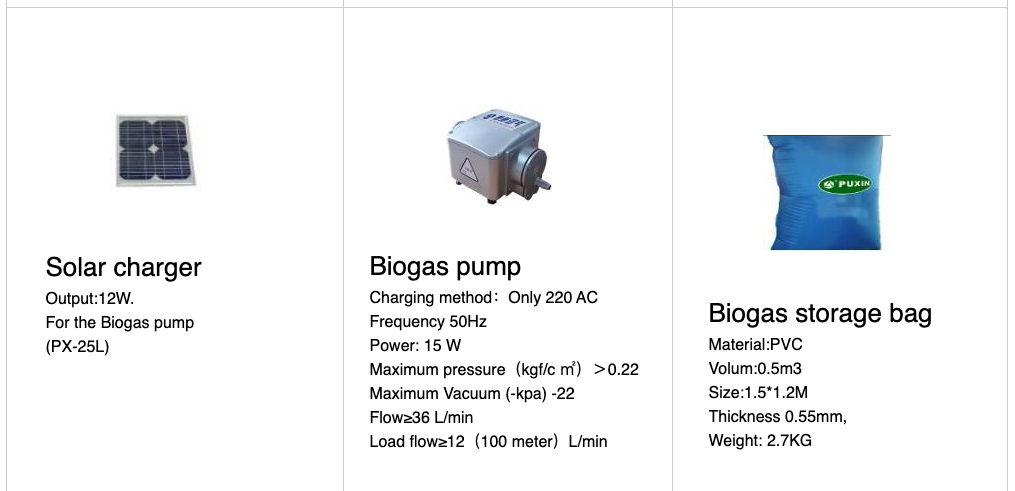

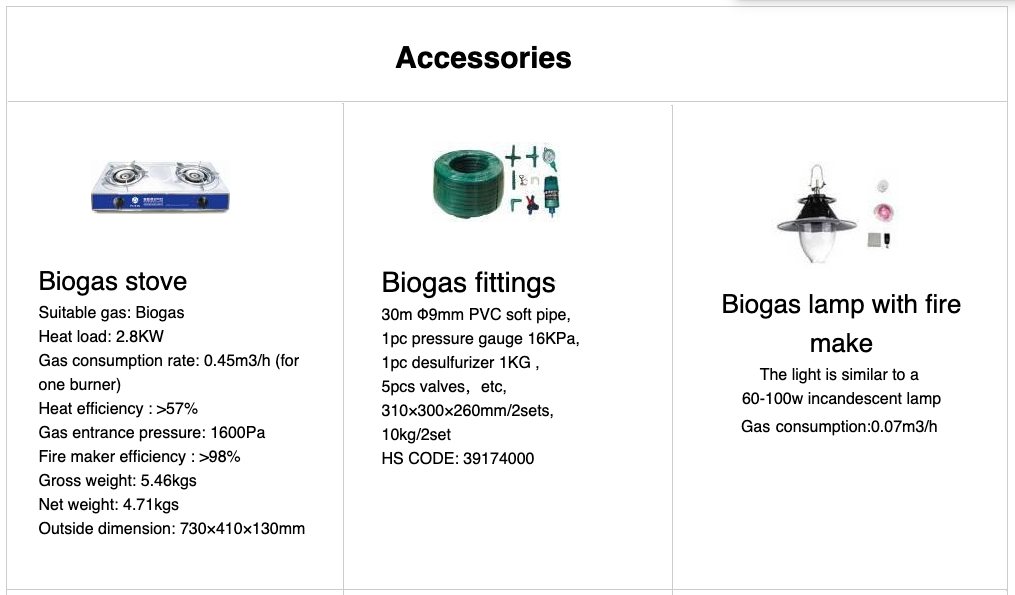

The biogas utilization system is composed of a desulfurizer, a gas storage bag,a gas pump, a solar charger, a pressure gauge, gas pipeline and biogas appliances (stove, rice cooker, lamp and generator etc) .

Advantages

1.No greenhouse gas escape and no smell

(all the gases produced are collected and burned)

2.Can get clean liquid fertilizer that can be used for gardening.

3.Biogas is collected and used.

4.Easy and quick to install.

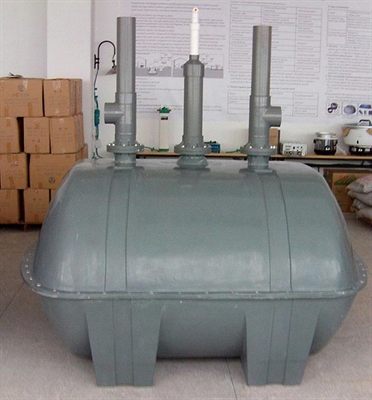

Biogas Septic Tank 2.0m3

Made with fiber glass reinforced plastic ,is composed of an upper part and a under part

that are connected by screw bolts

Biogas Septic Tank 2.0m3Biogas Septic Tank 2.0m3Biogas Septic Tank 2.0m3



Specifications
